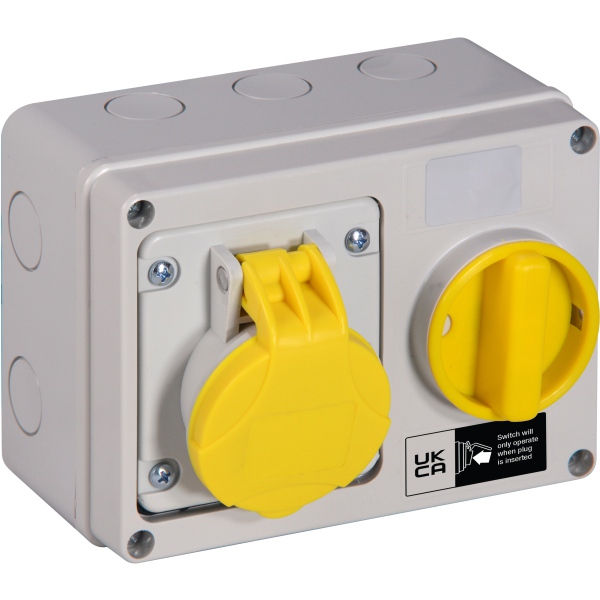

IP44 32A 2P+E 110v Yellow Horizontal SW/Interlocked Socket

Technical Specifications

Voltage	110V
Huws Gray Part No	U0133784
Colour	Yellow
Guarantee	12 Months
IP Rating	IP44
Material	Plastic/Metal Parts
Weight (kg)	0.550 Kg
Standards	IEC/CEI/EN 60309-1, IEC/CEI/EN 60309-11
Dimensions	155mm x 115mm x105mm
IK Rating	IK08 ( IEC /EN 62262)
Manufacturer Part Number	V443231HSW

Documents

• IP44 32A 2P+E 110v Yellow Horizontal SW/Interlocke - Data Sheet (374.14 KB)
• IP44 32A 2P+E 110v Yellow Horizontal SW/Interlocke - Declaration of Conformity (64.09 KB)
